Vivotek ND9323P-2TB-4IB80 H.265 NVR,2TBHDD,8PoEPorts,4xIB9380-H 5MP30MIR OutdrBullet

• Compression : H.264, H.265, MJPEG,
•  Field of View (Horizontal) : 76°Field of View
•  Lens Type : Fixed Lens
•  Lens Size : 3.6mm Lens
•  Sensor Type : CMOS
•  Sensor Size : 1/2.7" Sensor
•  Pre-Installed Storage : 2 TB
•  Max. Recording Resolution : 8MP (4K)
•  Protection Code : IK10 IP66
•  Environmental : Outdoor
•  Sensor Size : 1/2.7"
•  Aperture : F2.0
•  Number of PoE Ports : 8 PoE Ports
•  Audio Support : Built-in Microphone

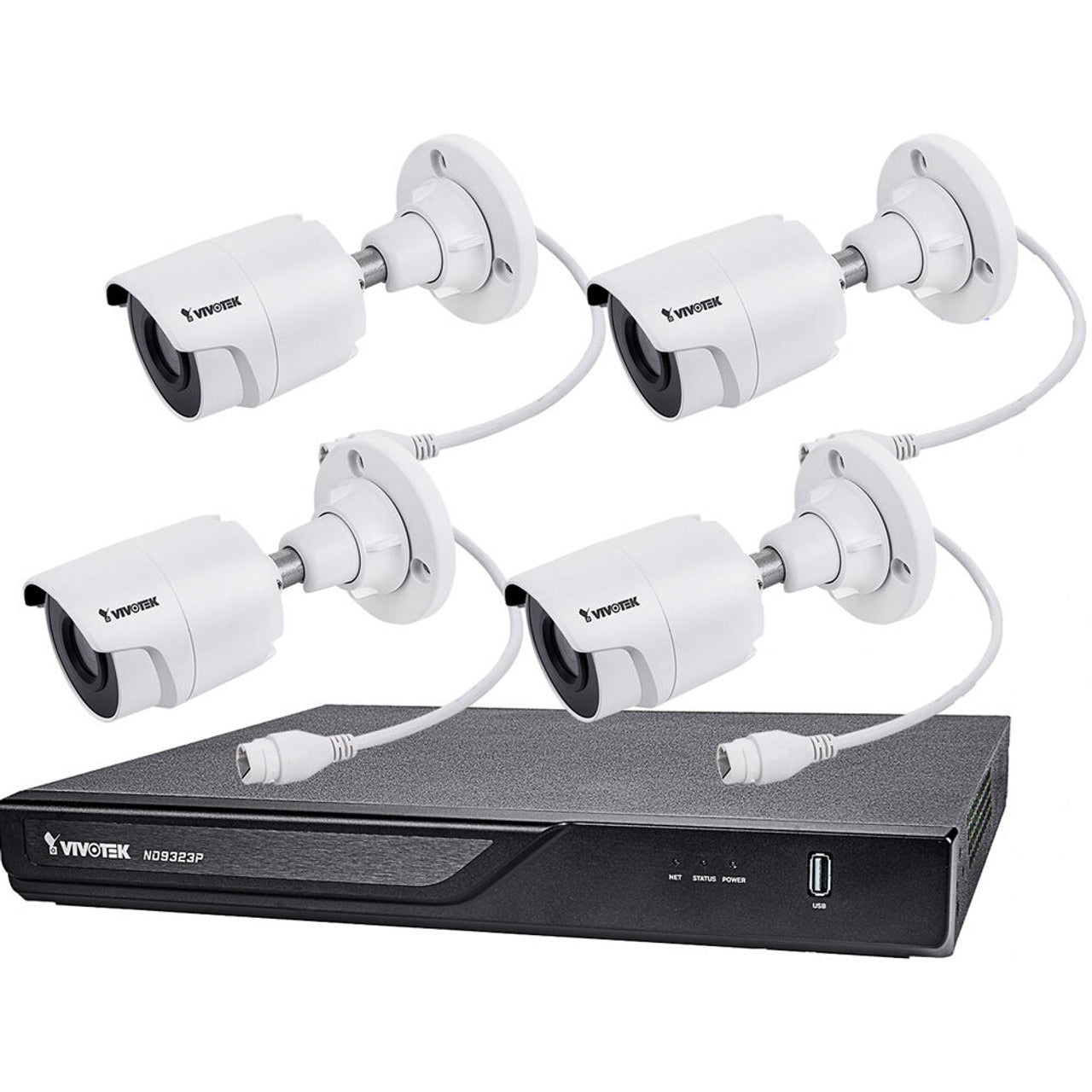

Kit Includes:

• 1 ND9323P NVR with 2TB Hard Drive
• 4 IB9380-H Outdoor IR Dome IP Cameras

VIVOTEK's ND9323P is a H.265 Linux-based standalone NVR that supports up to 4K IP camera video decoding and local 4K video display. With advanced H.265 compression technology, users are able to experience Full HD quality video while expending less HDD capacity than H.264.
The NVR features embedded 8x 802.3 at/af PoE ports to provide users easy and convenient IP camera installation, and also supports remote and mobile access via VIVOCloud and iViewer apps for both iOS and Android devices. The VIVOCloud app provides instant push notification and direct video playback functions when triggered by an alarm notification and provides users a flexible and intelligent NVR for seamless use in small to medium sized video surveillance applications.

ND9323P NVR Key Features

• 8 Channel
• 30 fps @ 3840x2160
• 64 Mbps Throughput
• 2TB Storage
• iOS/Android
• Internet Explorer 10 or above
• HDMI/VGA

IB9380-H IP Security Camera Key Features

• H.265 Compression Technology
• SNV (Supreme Night Visibility) for Low Light Conditions
• 20 fps @ 2560x1920 (WDR Pro on)
• WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
• Smart Stream III to Optimize Bandwidth Efficiency
• Built-in IR Illuminators, Effective up to 30 Meters
• Trend Micro IoT Security
• Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
• Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
