FLIR 427-1064-91-00 FB-618 O - 24MM, 25HZ, EU
FLIR 427-1064-91-00 FB-618 O - 24MM, 25HZ, EU
Couldn't load pickup availability

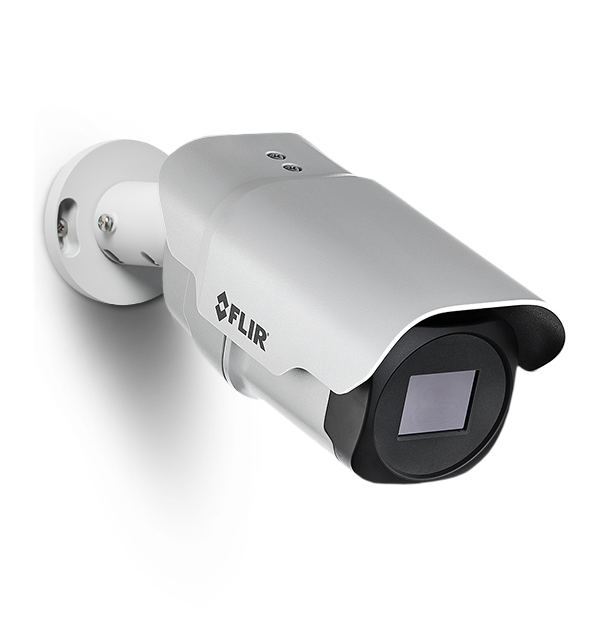

The compact FLIR Elara™ FB-Series O thermal security camera delivers industry-leading thermal imaging for perimeter and wide area protection around the clock. The camera also offers "plug-and-play" compatibility with external video analytics and major VMS suppliers, including FLIR United VMS, for additional functionality and a flawless user experience.
General
- Detector Type
- Long-Life, Uncooled VOx Microbolometer
- Dimensions (L x W x H)
- 285 x 96 x 94 mm/11.1" x 3.8" x 3.7" With sunshield and fully extended mounting arm
- Effective Resolution
- 307,200 pixels
- Focus Range
- Athermalized, focus-free
- Input Voltage
- 12 VDC 24VAC PoE
- Power Consumption
- 12V DC: 17 W (maximum with heaters) / 24V AC : 13 VA (maximum with heaters) 24V DC : 13 W (maximum with heaters) / PoE: 13 W
Environmental
-
Humidity
-
10%-90% relative humidity
-
IP Rating (dust & water ingress)
-
IP66
-
Operating Temperature Range
-
-40° to 50° C (-40° to 122° F) Cold Start
-
Regulatory
-
FCC Part 15 (Subpart B, Class A), CE marked, EN55032, EN55024, RoHS, WEEE
-
Storage Temperature Range
-
-40°C to 70°C (-40°-158°F)
System Integration
-
Ethernet
-
10/100 Mbps
-
External Analytics Compatible
-
Yes
-
Network APIs
-
Nexus SDK for comprehensive system control and integration; Nexus CGI for http command interfaces; ONVIF Profile S
-
Supported Protocols
-
IPV4, HTTP, Bonjour, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP
Thermal Camera
- Image Uniformity Optimization
- Automatic Flat Field Correction (FFC) - Thermal and Temporal triggers
- Pixel Pitch
- 12 um
- Thermal AGC Region of Interest [ROI]
- Default, Presets and User Defined for optimal image quality of subjects of interest
- Thermal Image Settings
- Auto AGC, Dynamic Detail Enhancement (DDE), Brightness, Sharpness, Contrast
Video & Recording
- Composite Video NTSC or PAL
- Hybrid system with IP & analog video
- Digital Video Compression
- Two independent channels of H.264 and MJPEG
- Streaming Resolution PAL/NTSC
- VGA: 640x480 & QVGA: 320x240
Visible Camera
- Array format
- 640 × 480
- Field of view (FOV)
- 32°
- f-number
- F1.0
- Focal Length
- 8.7 mm
- Sensitivity
- <50mK
- Spectral Range
- 8 µm to 14 µm
