FLIR 427-1064-61-00S FB-309 O - 24MM, 8.3HZ, EU
FLIR 427-1064-61-00S FB-309 O - 24MM, 8.3HZ, EU
Couldn't load pickup availability

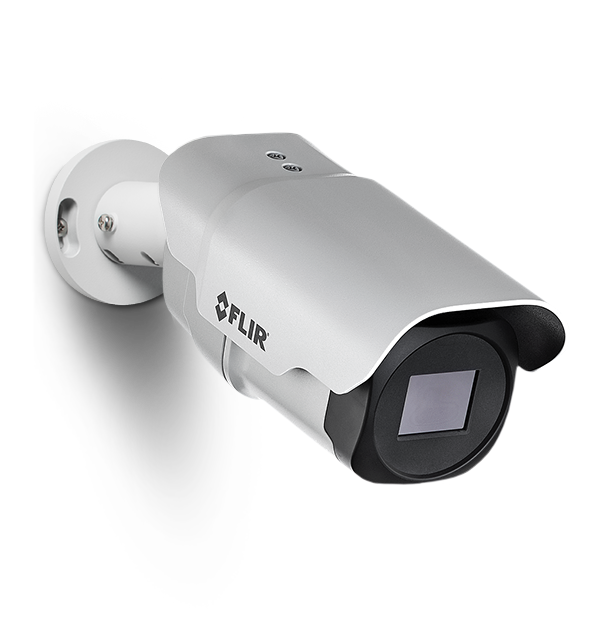

The compact FLIR Elara™ FB-Series O thermal security camera delivers industry-leading thermal imaging for perimeter and wide area protection around the clock. The camera also offers "plug-and-play" compatibility with external video analytics and major VMS suppliers, including FLIR United VMS, for additional functionality and a flawless user experience.
General
-
Detector Type
-
Long-Life, Uncooled VOx Microbolometer
-
Dimensions (L x W x H)
-
285 x 96 x 94 mm/11.1" x 3.8" x 3.7" With sunshield and fully extended mounting arm
-
Effective Resolution
-
76,800 pixels
-
Focus Range
-
Athermalized, focus-free
-
Input Voltage
-
12 VDC 24VAC PoE
-
Power Consumption
-
12 VDC: 17 W (maximum with heaters) 24VAC : 13 VA (maximum with heaters) 24VDC : 13 W (maximum with heaters) PoE: 13 W
Environmental
-
Humidity
-
10%-90% relative humidity
-
IP Rating (dust & water ingress)
-
IP66
-
Operating Temperature Range
-
-40°C to 50°C
-
Regulatory
-
FCC Part 15 (Subpart B, Class A), CE marked, EN55032, EN55024, RoHS, WEEE
- Storage Temperature Range
- -20°C to 70°C
System Integration
- Ethernet
- 10/100 Mbps
- External Analytics Compatible
- Yes
- Network APIs
- Nexus SDK for comprehensive system control and integration; Nexus CGI for http command interfaces; ONVIF Profile S
- Supported Protocols
- IPV4, HTTP, Bonjour, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP
Thermal Camera
-
Image Uniformity Optimization
-
Automatic Flat Field Correction (FFC) - Thermal and Temporal triggers
-
Pixel Pitch
-
12u
-
Thermal AGC Region of Interest [ROI]
-
Default, Presets and User Defined for optimal image quality of subjects of interest
-
Thermal Image Settings
-
Auto AGC, Dynamic Detail Enhancement (DDE), Brightness, Sharpness, Contrast
Video & Recording
- Composite Video NTSC or PAL
- Hybrid system with IP & analog video
- Digital Video Compression
- Two independent channels of H.264 and MJPEG
- Streaming Resolution PAL/NTSC
- Native: 320x256
Visible Camera
- Array format
- 320 × 240
- Field of view (FOV)
- 9°
- f-number
- F1.0
- Focal Length
- 24mm
- Sensitivity
- <50mK @ 25c F# 1.0
- Spectral Range
- 8 µm to 14 µm
- Video Frame Rate
- NTSC: 30 Hz PAL: 25 Hz
