FLIR 427-0033-71-00S F-610 ID - 65MM, 8.3HZ
FLIR 427-0033-71-00S F-610 ID - 65MM, 8.3HZ
Regular price
$14,151.20 USD
Regular price
$17,689.00 USD
Sale price
$14,151.20 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

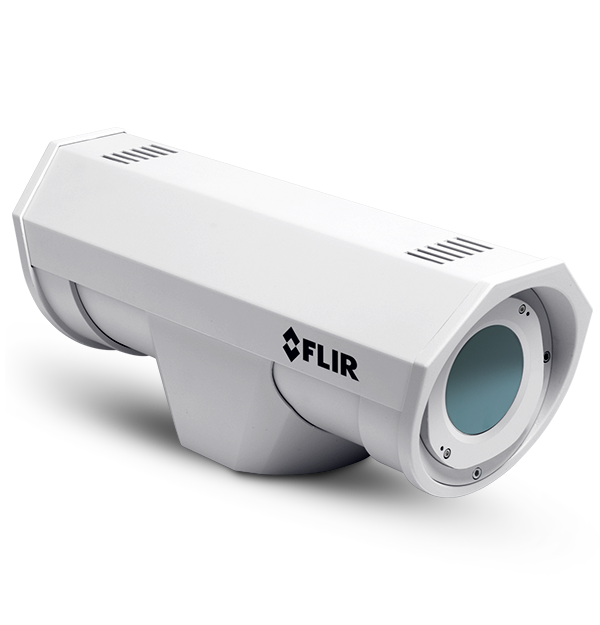

The FLIR Triton™ F-Series ID thermal security cameras set the new standard of perimeter protection for critical infrastructure. The Triton F-Series ID features best-in-class thermal imaging detail and high-performance onboard analytics for classifying human or vehicular intrusions. FLIR’s premium line offers five models with full 640 × 480 thermal resolution, longer detection ranges, and better analytics performance than ever before.
General
- Detector Type
- Long-Life, Uncooled VOx Microbolometer
- Dimensions (L x W x H)
- 18.1" × 5.5" × 6.3" (460 × 140 × 160 mm)
- Input Voltage
- 24 VDC (21-30 VDC), 24 VAC (21-30 VAC)
- Model
- F-608 ID
- Power Consumption
- Uncooled: 24 VAC: 85 VA (max w/o heaters) 215 VA (max w/heaters) 24 VDC: 65 W (max w/o heaters) 195 W (max w/heaters)
- Thermal Effective Resolution
- 307200.0
- Thermal Pixel Pitch
- 17 µm
- Thermal Spectral Range
- 7.5 µm to 13.5 µm
- Thermal Zoom
- 4x continuous E-Zoom
- Weight
- 9.55lb (4.4kg)
Environmental
- De-Icing/Anti-Icing
- MIL-STD-810F, Method 521.1; - De-Icing of 3/6mm pending model
- Humidity
- 0-95% relative
- IP Rating (dust & water ingress)
- IP66
- Operating Temperature Range
- -40°C to 70°C / -40° F to 158°F cold start
- Shock
- MIL-STD-810F "Transportation"
- Storage Temperature Range
- -55° to 85°C / -67° F to 185° F
- Vibration
- IEC 60068-2-27
Sensor & Optical
- Field of View
- 10°×8°
System Integration
- Ethernet
- Yes
- Network APIs
- FLIR SDK FLIR CGI ONVIF Profile S
Thermal Camera
- Thermal Frame Rate
- NTSC: 30 Hz; PAL: 25 Hz / 8.3 Hz
Video & Recording
- Composite Video NTSC or PAL
- Yes: Hybrid IP & Analog
- Video Compression
- Two independent channels of H.264 & M-JPEG
- Video Image Uniformity Optimization
- Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers
- Video Streaming Resolution
- QVGA to VGA
- Video Thermal AGC Modes
- Auto AGC, Dynamic Detail Enhancement (DDE), Sensitivity, Brightness, Contrast, Sharpness
- Video Thermal AGC Region of Interest [ROI]
- Default, Presets and User definable to insure optimal image quality on subjects of interest
Visible Camera
- Array format
- 640 × 480
- f-number
- 1.25
- Focal Length
- 65 mm
