Flir

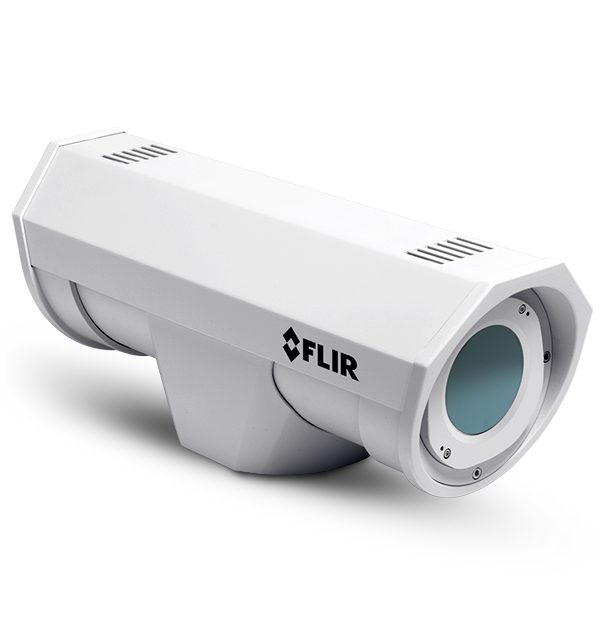

FLIR 427-0033-40-00 F-612 ID - 50 MM, 30HZ
FLIR 427-0033-40-00 F-612 ID - 50 MM, 30HZ
Couldn't load pickup availability
The FLIR Triton™ F-Series ID thermal security cameras set the new standard of perimeter protection for critical infrastructure. The Triton F-Series ID features best-in-class thermal imaging detail and high-performance onboard analytics for classifying human or vehicular intrusions. FLIR’s premium line offers five models with full 640 × 480 thermal resolution, longer detection ranges, and better analytics performance than ever before.
General
-
Detector Type
-
Long-Life, Uncooled VOx Microbolometer
-
Dimensions (L x W x H)
-
18.1" × 5.5" × 6.3" (460 × 140 × 160 mm)
-
Input Voltage
-
24 VDC (21-30 VDC), 24 VAC (21-30 VAC)
-
Model
-
F-612 ID
-
Power Consumption
-
Uncooled: 24 VAC: 85 VA (max w/o heaters) 215 VA (max w/heaters) 24 VDC: 65 W (max w/o heaters) 195 W (max w/heaters)
-
Thermal Effective Resolution
-
307,200
-
Thermal Pixel Pitch
-
17 µm
-
Thermal Spectral Range
-
7.5 µm to 13.5 µm
-
Thermal Zoom
-
4x continuous E-Zoom
-
Weight
-
9.55lb (4.4kg)
Environmental
- De-Icing/Anti-Icing
- MIL-STD-810F, Method 521.1; - De-Icing of 3/6mm pending model
- Humidity
- 0-95% relative
- IP Rating (dust & water ingress)
- IP66
- Operating Temperature Range
- -40°C to 70°C / -40° F to 158°F cold start
- Shock
- MIL-STD-810F "Transportation"
- Storage Temperature Range
- -55° to 85°C / -67° F to 185° F
- Vibration
- IEC 60068-2-27
Sensor & Optical
- Field of View
- 12° × 10°
System Integration
-
Ethernet
-
Yes
- Network APIs
- FLIR SDK FLIR CGI ONVIF Profile S
Thermal Camera
- Thermal Frame Rate
- NTSC: 30 Hz; PAL: 25 Hz / 8.3 Hz
Video & Recording
-
Composite Video NTSC or PAL
-
Yes: Hybrid IP & Analog
-
Video Compression
-
Two independent channels of H.264 & M-JPEG
-
Video Image Uniformity Optimization
-
Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers
-
Video Streaming Resolution
-
QVGA to VGA
-
Video Thermal AGC Modes
-
Auto AGC, Dynamic Detail Enhancement (DDE), Sensitivity, Brightness, Contrast, Sharpness
- Video Thermal AGC Region of Interest [ROI]
- Default, Presets and User definable to insure optimal image quality on subjects of interest
Visible Camera
- Array format
- 640 × 480
- Focal Length
- 50 mm
