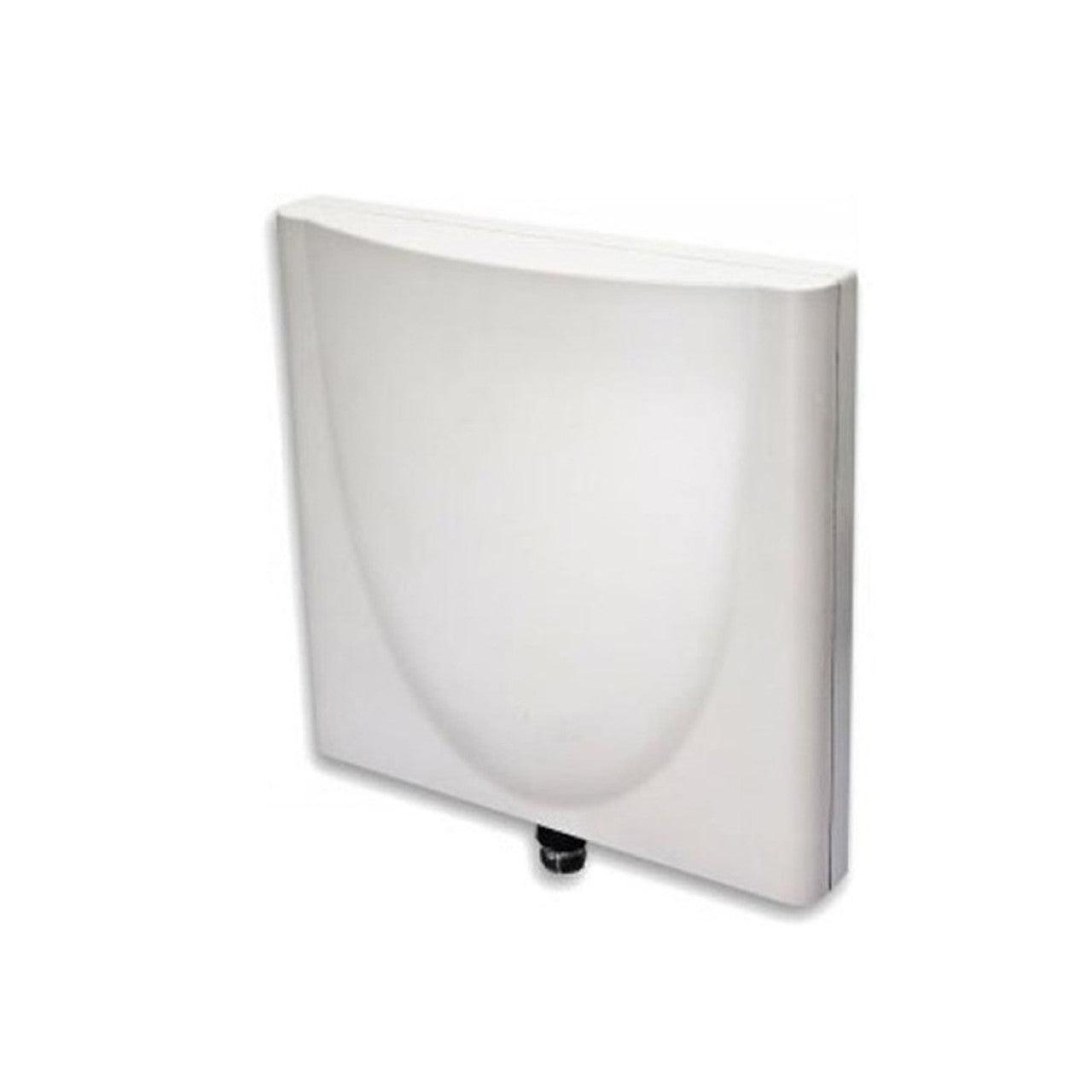

Vivotek SAA04 Panel Antenna _ 5Km

Vivotek SAA04 Panel Antenna _ 5Km

$147.03 USD

~~$274.32 USD~~ $147.03 USD

Sale Sold out

Tax included. Shipping calculated at checkout.

Quantity

Frequency range 4900MHz - 5875MHz
Gain 17~18 dBi
Frequency range 4900 MHz - 5875 MHz
Gain 17~18 dBi
VSWR 2.0: 1 Max.
Polarization Linear, Vertical
HPBW / horizontal 17.5~23
HPBW / vertical 16~19
Sidelobe level Co-pol. -11.5 dB (max.), Cross-pol. -18 dB (max.)
Front-to-back ratio -21 dB (max.)
Isolation N/A
Power handling 5 W (cw)
Impedance 50 Ohms
Cable N/A
Connector N female
Lightning protection DC ground
Survival wind speed 216 km/hr
Temperature - 40°C to +80°C
Humidity 95% @ 55ﾟC
Radome color Gray-white
Radome material ABS, UV Resistant
Weight 825 g
Dimensions 200 x 218 x 50 mm
Waterproof IP-X5
