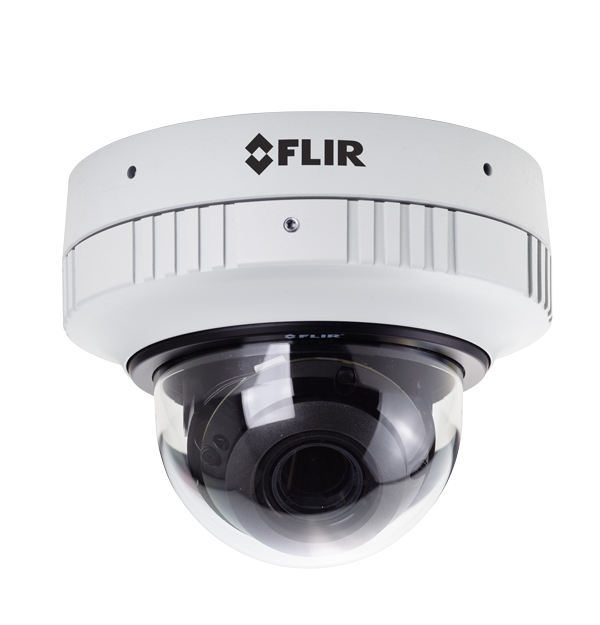

FLIR CM-6405-11-I Quasar GEN 4 5 MP Ultra HD IP MD Camera
FLIR CM-6405-11-I Quasar GEN 4 5 MP Ultra HD IP MD Camera
Regular price
$1,023.20 USD
Regular price
$1,279.00 USD
Sale price
$1,023.20 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The FLIR Quasar Premium Mini-Dome AI cameras are designed to provide advanced artificial intelligence, video analytics, and enhanced situational awareness in the most demanding environments where evidential and forensic video is required. The Premium Mini-Dome AI is a discreet surveillance option that is fully NDAA-compliant and utilizes high-end cybersecurity safeguards. Advanced features for low-light/no-light conditions ensure you will obtain excellent video quality in all indoor and outdoor conditions. Combined with the FLIR accessory and mounting ecosystem, the FLIR Quasar Premium Mini-Dome AI camera also offers seamless integration with a wide range of video management systems, giving you a more cost-effective end-to-end surveillance solution.
General
- Angle of View
- 102.1° × 70.2°
- Automatic Electronic Shutter [AES]
- 1/1 to 1/32,000
- Compression
- Enhanced H.265 Main Profle + Enhanced H.264 Main/High/Baseline Profle + MJPEG"
- Day/Night Mode
- Yes
- Digital Slow Shutter [DSS]
- 1/1 (1) - 1/60 (50) NTSC (PAL)
- Dimensions
- 161 mm × 128.6 mm (6.3 in × 5 in)
- Enclosure
- Indoor/Outdoor: IK10 rated vandal IP66 NEMA 4X
- Firmware Upgrade
- Flash memory for upgrade of camera firmware over the network
- Input Voltage
- PoE IEEE802.3af, class 0 AC 24 V, DC 12 V
- Power Connection
- RJ45 & AC/DC
- Power Consumption
- POE: 12.95W AC 24V: 13.2W; 24.20 VA DC 12V: 13.31W
- Privacy Zones
- Yes
- Scanning Mode
- Progressive
- Shutter WDR
- 3 Shutter, 130 dB
- Tamper Detection
- Yes
- Unit Weight
- 1.3 kg (2.86 lb)
Compliance & Certifications
- International
- CE marked, EN61000-6-3, EN 62368-1 & EN50130-4, CB 62368-1, LVD (CoC), RoHS, RCM, WEEE, ISTA-3A
- MTBF [hrs]
- 457097.0
- ONVIF Compliance
- Profiles S, G, M & T
- USA
- FCC Part 15 (subpart B, class A)
Cyber Security
- Security
- Password protection, IP address filtering, TLS/HTTPS, IEEE 802.1X network access control, Digest authentication, Password policy Protect from multiple failure login
Environmental
- Humidity
- 90% (non-condensing)
- Operating Temperature
- -30°C to 60°C (-22°F to 140°F) without heater IR LED 100% max 50°C, 25% max 55°C -55°C to 60°C (-67°F to 140°F) with heater Cold start -40°C to 60°C (-40°F to 140°F) with heater IR LED 100% max 50°C, 25% max 55°C
- Storage Temperature
- -20°C to 70°C (-4°F to 158°F)
Environmental
- Shock & Vibration
- IEC 60068-2-64: 2008
Measurement & Analysis
- Analytics Features
- Person/Face/Vehicle; Intrusion-Region/ Tripwire; Object Counting, Loitering, Stopped Vehicle; Abandoned Object; Object Removal; Wrong Direction; Camera Sabotage; People Counting
- Analytics Management
- Web-based configuration and management, masking of analytic detection areas, adjustable sensitivity, automatic responses, remote I/O control
Measurement & Analysis
- Bump/Vibration
- IEC 60068-2-27: 2008
PTZ
- Pan_Tilt_Spin
- 356° /±80° / ±98°
Sensor & Optical
- Automatic Gain Control [AGC]
- Auto
System Integration
- Bi-directional Audio
- 1 Audio Line Input, G.711/G.726/AAC/LPCM support + 1 Audio Line Output
- Distance
- Up to 40 m (131 ft)
Sunshield 28 m (91.8 ft)
- Ethernet
- 10/100/1000, IEEE 802.3, auto sensing 1 x RJ45
- Input
- 1 dry alarm contact 1 5 V 10 kΩ pull up
- Network Protocol
- IPV4/6, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X, SNMP, QoS, TLS, SMTP, FTP, DDNS, PPPoE, RTCP
- Output
- 1 Relay Contact max. DC 5 V 130MA
- Peak Emission Wavelength [nm]
- 850.0
- Remote Configuration
- Via web browser or supported video management software
- Supported Web Browser
- Firefox, Chrome, Edge, Safari
Video & Recording
- Maximum Performance
- H.264/H.265 30/25 fps @ 5M (NTSC/PAL) + 30/25 fps @ D1 or H.264/H.265 15/12 fps @ 5M + 1080p + D1 (NTSC/PAL) or H.264/H.265 60/50 fps @ 1080p + 30/25 fps @ 720p + D1 (NTSC/ PAL)
- Rate Control
- CBR, CVBR, LBR, MJPEG
- Resolution Range
- Scalable from QCIF to 5 MP
- SD Card Recording1
- microSD/microSDHC/microSDXC 8 GB to 1 TB (Class 10)
- Video Motion Detection
- Yes
Visible Camera
- Backlight Compensation
- On / Off
- Bandwidth
- Configurable between 64 Kbps and 20 Mbps
- Image Sensor
- 1/2.7-in CMOS
- Lens Type
- Motorized lens 2.7 mm to 12 mm, F1.6-F2.9
H-FOV: 102.14° (Wide); 31.53° (Tele)
V-FOV: 70.28° (Wide); 22.71° (Tele)
- Mechanical IR Cut Filter
- Yes
- Noise Reduction
- 3D/2D/Color
- Sensitivity
- 0.04 (color)/ 0.008 (BW, 0 Lux with IR illuminator ON, measured at 30 IRE
- Sensor Resolution
- 2688 × 1944
- Signal to Noise Ratio
- ±55 dB
- White Balance
- Auto / ATW / Manual / One Push
