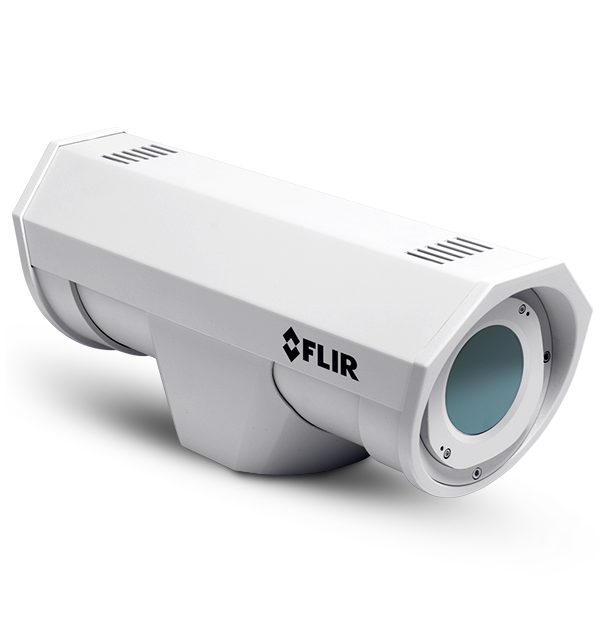

FLIR 427-0033-50-00 F-608 ID - 75 MM, 30HZ

The FLIR Triton™ F-Series ID thermal security cameras set the new standard of perimeter protection for critical infrastructure. The Triton F-Series ID features best-in-class thermal imaging detail and high-performance onboard analytics for classifying human or vehicular intrusions. FLIR’s premium line offers five models with full 640 × 480 thermal resolution, longer detection ranges, and better analytics performance than ever before.

General

Detector Type

Long-Life, Uncooled VOx Microbolometer

Dimensions (L x W x H)

18.1" × 5.5" × 6.3" (460 × 140 × 160 mm)

Input Voltage

24 VDC (21-30 VDC), 24 VAC (21-30 VAC)

Model

F-608 ID

Power Consumption

Uncooled: 24 VAC: 85 VA (max w/o heaters) 215 VA (max w/heaters) 24 VDC: 65 W (max w/o heaters) 195 W (max w/heaters)

Thermal Effective Resolution

307,200

Thermal Pixel Pitch

17 µm

Thermal Spectral Range

7.5 µm to 13.5 µm

Thermal Zoom

4x continuous E-Zoom

Weight

9.55lb (4.4kg)

Environmental

De-Icing/Anti-Icing

MIL-STD-810F, Method 521.1; - De-Icing of 3/6mm pending model

Humidity

0-95% relative

IP Rating (dust & water ingress)

IP66

Operating Temperature Range

-40°C to 70°C / -40° F to 158°F cold start

Shock

MIL-STD-810F "Transportation"

Storage Temperature Range

-55° to 85°C / -67° F to 185° F

Vibration

IEC 60068-2-27

Sensor & Optical

Field of View

8.6° × 6.6°

System Integration

Ethernet

Yes

Network APIs

FLIR SDK FLIR CGI ONVIF Profile S

Thermal Camera

Thermal Frame Rate

NTSC: 30 Hz; PAL: 25 Hz / 8.3 Hz

Video & Recording

Composite Video NTSC or PAL

Yes: Hybrid IP & Analog

Video Compression

Two independent channels of H.264 & M-JPEG

Video Image Uniformity Optimization

Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers

Video Streaming Resolution

QVGA to VGA

Video Thermal AGC Modes

Auto AGC, Dynamic Detail Enhancement (DDE), Sensitivity, Brightness, Contrast, Sharpness

Video Thermal AGC Region of Interest [ROI]

Default, Presets and User definable to insure optimal image quality on subjects of interest

Visible Camera

Array format

640 × 480

Focal Length

75 mm



Downloads

F- Series ID Datasheet
